Profile

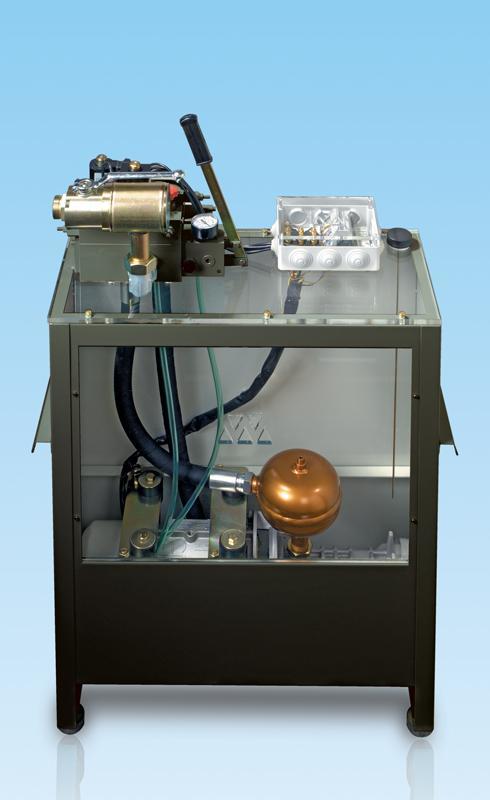

The 135/S pump unit with innivativa patented SILENT KIT is the best solution for your lift.
- Range from 4 to 8 people, up to 20 meters car travel
- Minimum needed oil to cover the motor/pump (35 liters)
- Choice between horizontal or vertical shut/off valve. Submersible 3-phase motors 50/60 Hz
- Monomater, electrovalves, dumper, sut/off filter, standard wiring and standard packaging supplied
- Soft Starter and "E board-1" available
Technical features
| Compact 135/S | |
| min. cylinder rod (mm) | 60 |
| max. cylinder rod (mm) | 130 |
| min. car speed (m/s) | 0,14 |
| max. car speed (m/s) | 0,96 |
| min. pump flow (l/s) | 55 |
| max. pump flow | 150 |
