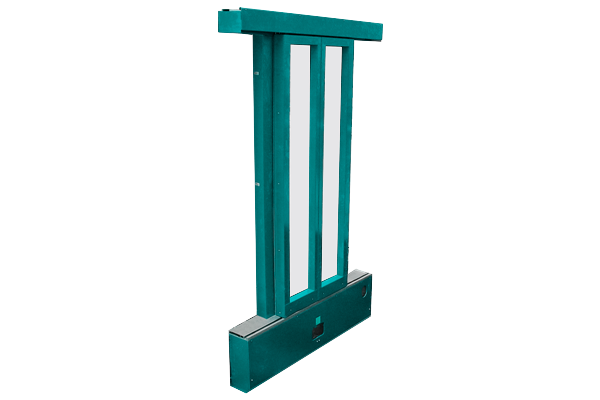

The first ever certified automatic door with optical couplingThese door systems, based on optical coupling, are the right solution for all those situations in which mechanical coupling is not possible.
Both the car and the landing door feature linear belt traction operators, each with its own engine. They couple through an optical device, integrated into the engine SWS controller, allowing a misalignment up to 50 mm between the centers of the emitter and the detector. Being prEN 81-22 certified, SWS is ideal for inclined lifts; inclinations between 15° and 75° are allowed and, for complex installations, it’s even possible to have different inclinations from floor to floor.
A fully covered operator guarantees high IP ratings and protection degrees even in extreme weather conditions. A wide range of finishes, fire certifications and special solutions are available.
| Product Range | ||
| Model | TB min-max (mm) | TH min-max (mm) |
| K-S 2R/L | 800 - 1200 | 2000 - 2200 |
| K-S 2Z | 800 - 1800 | 2000 - 2200 |
| Door Opening Type | |
 |
 |
 |
|
| STANDARD MOTORIZATION | ||
| Belt-driven operator with 24 Vdc optical encoder controller motor, SDS DC-PWM technology with integrated switching transformer | ||
| • Power supply voltage:90-290 Vac (115 V -20%,230V+26%),50-60 Hz with intergrated switching • Power rated 200 VA • Emergency power supply 24/36Vdc • Operating tenperature range -10°C to +60°C • Operating humidity range: up to 80% non condensing • On-board obstacle detection (door re-opening) feature • Separately adjustable opening and closing speed • Integrated self-learning cycle and automated speed profiles setting |
| DOOR AND FRAME FINISHES | STANDARD | OPTIONS |
| RAL 7032 powder coating |  |
 |
| Other RAL Colours | |
|
| Frameless glass panels | |
|
| Stainless steel claddings | |
|
| Skin plate claddings | |
|
| BOTTOM TRACK | STANDARD | OPTIONS |
| Aluminum | |
|
| Steel | |
|
| Stainless Steel | |
AISI 304/ AISI 316
|
| Brass ,Bronze | |
|
| MAIN FEATURES | STANDARD | OPTIONS |
| Certified locking device | EN81-20/50 EN81-1/2 |
|
| Position of the lock release | Integrated into the header or in the panel |
|
| Door closing | Spirator / Counterweight |
|
| Door panels | Front / rear cladding | |
| Header height | 400 mm | |
| Frame | 135×45 mm door posts | Reduced door posts (min. 80×45 mm) Increase door posts (> 135 mm) |
| Installation | In the shaft | In niche |
| Kit man in the pit | In case of EN81-20/50 | In case of EN81-1/2 |
| Monostable contact | EN81-20/50 | EN81-1/2 |
| Impact robust packaging |
Cardboard box Wood (ISPM15) |
|
| Average car door cycle per year |
500.000 | |
| Coupling type | Optical (mechanical coupling free) | |
| SPECIAL EXECUTION | OPTIONS |
| Smoke-seal/Air-seal exeuction | |
| Anti-vandal execution | EN81-71 |
| Hidden bottom track | |
| Underdriven operator | |
| Heated bottom track | |
