Features
- Machine weight less than 2,000 lbs
- Rope tension in all directions
- Modular system allows a lot of options of the machine in various configurations
- ECN 1313 EnDat Encoder as standard with 2048 pulses per revolution
- Low-vibration and silent thanks to a perfectly matching magnet design
- For Low-Rise and Mid-Rise Applications. Up to 350’ Travel
- Safety brake system with electro- magnetical release, manual release as an option, contacts for brake control, dust cover for the brake air gap
- Independent brake system holds 125 % rated capacity (with Separate Emergency and Standard Braking)
- Synchronous motor, 20-pole, with high-efficiency permanent magnets, insulation class 155 (F)
- Up to 5 - 10 mm Ropes with U-Groove for Double-Wrap & 10 - 10 mm Ropes with V-Groove for Single-Wrap
Content of Supply

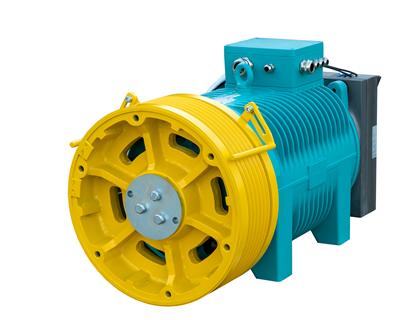

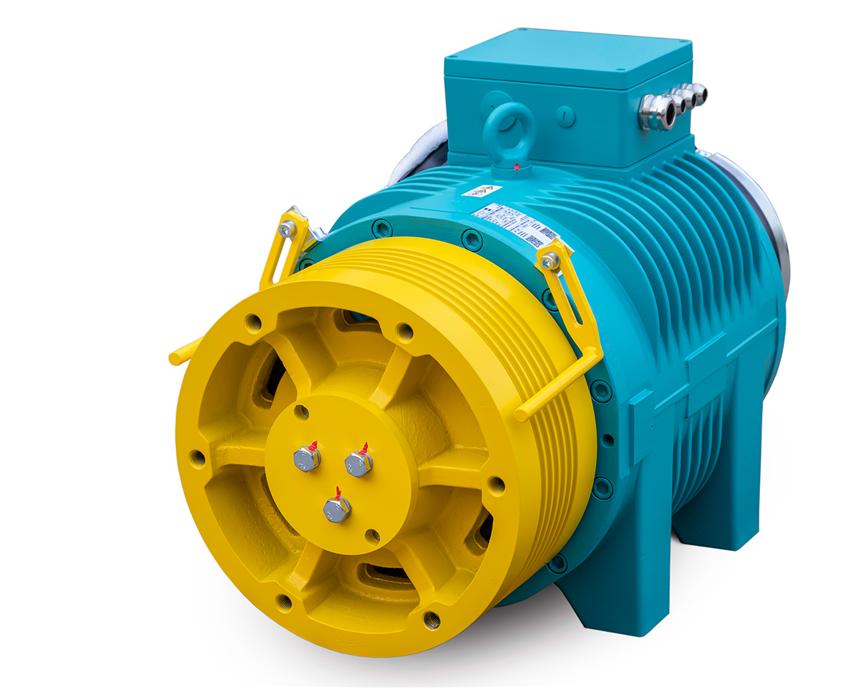

- ACPM Synchronous Gearless Machine for the North American Market
- "Barrel” Type for Machine Room and Machine-Room-Less Applications
- Compliant with ASME A17.1
- UL/CSA certified
- Deflector Sheaves and Customized Bedplates available
- Shaft loads up to 22 500 lbs
- Overhead, Basement and Side-mount Configurations
- Both Double-Wrap & Single-Wrap possible
- Up to 3500 lbs Capacity, 1:1 Roping Up to 6000 lbs Capacity, 2:1 Roping
Scheda tecnica
Application Data |
Roping | 1:1 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
for car speed | 200 fpm | 350 fpm | 500 fpm | |||||||
Capacity | nA [rpm] | PA [hp] | IA [A] | nA [rpm] | PA [hp] | IA [A] | nA [rpm] | PA [hp] | IA [A] | |
Voltage Suitable for 460V Inverter |
2500 Ibs | 49 | 8.7 | 42.4 | 85 | 15.3 | 42.4 | 121 | 21.9 | 42.4 |
3000 Ibs | 10.5 | 50.9 | 18.4 | 50.9 | 26.2 | 50.9 | ||||
3500 Ibs | 12.2 | 59.9 | 21.2 | 59.9 | 30.6 | 59.9 |
Application Data |
Roping | 2:1 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
for car speed | 200 fpm | 350 fpm | 500 fpm | |||||||
Capacity | nA [rpm] | PA [hp] | IA [A] | nA [rpm] | PA [hp] | IA [A] | nA [rpm] | PA [hp] | IA [A] | |
Voltage Suitable for 460V Inverter |
3500 Ibs | 97 | 14.2 | 34.8 | 170 | 23.2 | 57.7 | 243 | 33.2 | 57.7 |
4000 Ibs | 16.4 | 40.1 | 26.8 | 66.5 | 38.3 | 66.5 | ||||
4500 Ibs | 18.3 | 44.7 | 29.9 | 74.1 | 42.7 | 74.1 | ||||
5000 Ibs | 20.3 | 49.7 | 33.2 | 82.4 | 47.4 | 82.4 | ||||
6000 Ibs | 24.2 | 59.2 | 39.6 | 98.3 | 56.5 | 98.3 |
