Description

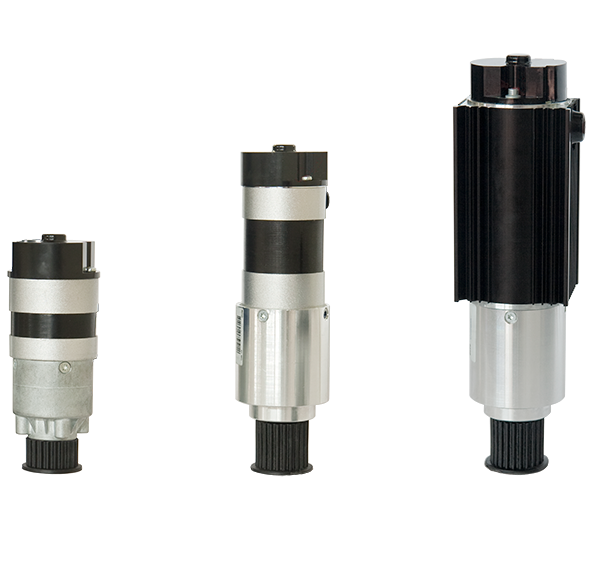

New high efficiency brushless drive design for low power consumption during operation and standby.
Up to 48% less power consumption compared to previous drive designs (ECO+)
Advantages:
Up to 48% less power consumption compared to previous drive designs (ECO+)
Advantages:
- Pre-configured from factory - no adjustments on site necessary (plug and play)
- Continuous mass detection - self adjusting acceleration and deceleration
- Fully electronically controlled closing force
- 24V emergency battery supply input
- Adjustable open force limitation
- Different settings for modernisation purposes
- 24V supply output signal to light curtains or photocells
- Self-diagnostic system
- CAN-Open interface available as option on Wittur door drives
- Vector control experience and performance now standard for the whole range of Wittur door drives
Technical sheet
| ECO+ | MIDI+ | SUPRA | |
|---|---|---|---|
| Motor characteristics | Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
| Drive system | Vector control | Vector control | Vector control |
| Max. power consumption | 80W | 550W | 900W |
| Max. speed | 0,5 m/s | 0,7 m/s | 1,0 m/s |
| Max. total panel weight | 130 kg | 270 kg | 600 kg |
| Protection class | IP20 | IP20, IP54 | IP20, IP54 |
| Power Supply | 127/230 VAC +/- 20% 50/60 Hz |
127/230 VAC +/- 20% 50/60 Hz |
127/230 VAC +/- 20% 50/60 Hz |
