Doors for freight elevators and industrial applications

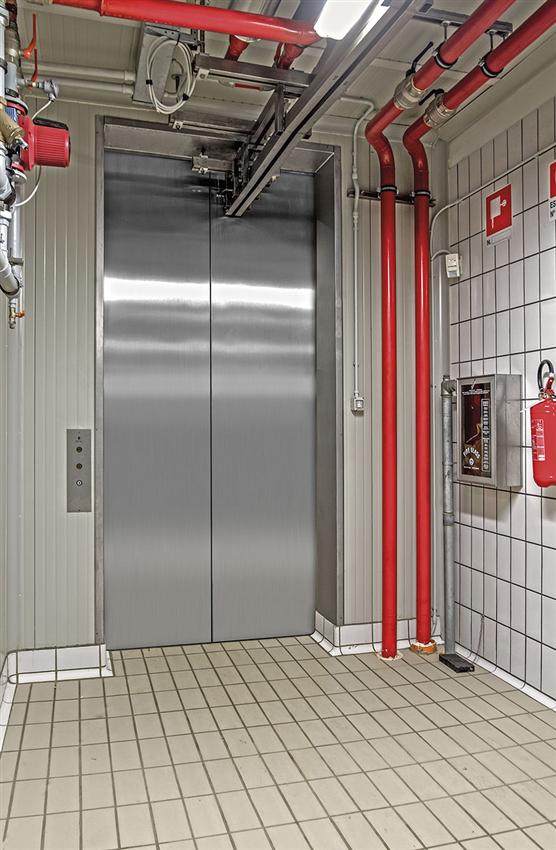

Pegasus Industrial is the new Wittur door for freight elevators. Thanks to its reinforcements and specially designed components Pegasus Industrial assures the safest solution for industrial applications.

Doors for freight elevators and industrial applications

Pegasus Industrial

Durable and reliable

A reliable and robust structure designed for freight elevators and industrial applications.

Design

A range of design solutions and options make Pegasus Industrial the ideal choice in case of freight elevator: reinforcement and “ad hoc” components assures the safest solution for industrial applications.

Wide range of doors

Wittur Pegasus Industrial is available in a wide range of door types to fulfill any installation requirement, with a wide range of fire certifications, vandal resistant executions, glass vision panels.

Certifications

EN 81-1 + A3:2009
EN 81-2 + A3:2009
EN 81-20/50:2014
European Lift Directive
TP TC 011/2011
GB 7588

Fire and vandal resistant certifications

EN 81-58
BS 476-22
EN 81-71

Landing door features

	Standard	Option
Reinforced rollers	•
Reinforced guide rails	•
Reinforcements for forklift application on panels		•
Reinforcements for forklift application on frames		•
Emergency key on panel	•
Twin brackets	•
Reinforced aluminium sill	•
Sill with drainage holes	•
Iron / Stainless steel sill		•
Lock rollers on bearings	•
Heated sill		•
Vision panel		•
Anti-scratch painting		•
Reclosing system	Counterweight

Configuratie

Code	Positie aandrijving	Serie	Deur type	Illustratie	Dagmaat min. (mm)	Dagmaat max. (mm)	deurhoogte min. (mm)	Deurhoogte max. (mm)
01/C		3201	01/C		1000	1800	2000	2700
11/L		3201	11/L		1000	1800	2000	2700
11/R		3201	11/R		1000	1800	2000	2700
31/L		3201	31/L		1000	2100	2000	2700
31/R		3201	31/R		1000	2100	2000	2700
41/C		3201	41/C		1400	3200	2000	2700
61/C		3201	61/C		1800	3200	2000	2700
