ADAPTA 2



Lightweight elevator passenger car

Description

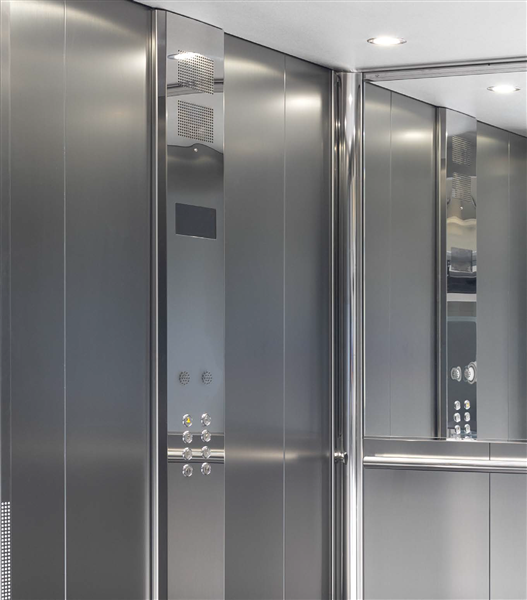

ADAPTA 2 is a lightweight elevator passenger car designed to offer a wide variety of finishes into a standard and easy to install structure.


Features



  • 320 kg - 1600 kg
  • Wide range of sizes with a step of 1mm
  • Solution also for reduced headroom or reduced pit
  • Easy and fast installation with coupling devices
  • Possibility to install the car internally (except the ceiling)
  • Compatible with various car sling, traditional rope sling and hydraulics sling
  • Compatible with various car door operators
  • Compatible with various COPs
  • Available with a wide range of finishes, lighting and accessories (mirror, handrail, skirting, bumper, seat, ladder)

CERTIFIED

ADAPTA 2 fulfills all the requirements of the Lift Directive, as well as EN 81-20/50, 2006/42/CE Machinery Directive and subsequent modifications, AS 1735-1, GOST 33984.1 and GB 7588+XG1.

Wittur additionally offers option to comply with EN 81-70, EN 81-71 and CP2 S550.



STANDARD EXECUTION

  • Ceiling in RAL 9010
  • Car front return in the same material as the side walls
  • Maximum rated load 1600 kg
  • Arrangement for floor cladding by customer (max 25 mm thickness)
Installation of side walls is performed from the platform and many alternatives for frames and doors are available.

Technical Sheet




RATED LOAD N. OF PERSON MINIMUM AVAILABLE CAR AREA MAXIMUM AVAILABLE CAR AREA
kg m2 m2
320 4 0,79 0,98
450 6 1,17 1,31
630 8 1,45 1,66
800 10 1,73 2,01
1.000 13 2,15 2,40
1.275 17 2,71 2,95
1.600 24 3,10 3,56




  MINIMUM AVAILABLE DIMENSION MAXIMUM AVAILABLE DIMENSION
mm mm
Car Internal Width CIW 700 1.400
Car Internal Depth CID 900 2.400


Compatibility



Wittur car solutions are 100% compatible with the wide range of Wittur doors and slings for a perfect fit and easy installation.

Wittur cars are also compatible with most non-Wittur products.



WITTUR DOORS WITTUR SYSTEMS SLINGS
Hydra Plus W LINE ALGI_C 1450​ WITTUR AHT 6 CTR
Hydra 3000 W LINE SLS TULFER HC1 WITTUR AHT 6
Augusta EVO W LINE EQ TULFER HC2-HC3 WITTUR AHT 8
ECOBUS   VIPAL 40235 WITTUR AHT 11-13
FINELINE®   TECHNOLIFT 501 WITTUR AHT 06-10
PEGASUS   TECHNOLIFT 1006 WITTUR AED 6-8
C-MOD   EMERALD 100 WITTUR WCF 06
2000 B   EMERALD 200 WITTUR WCF 10-16
2000 B-G   TECHNOLIFT MRU 1009
2000 B-MF   TECHNOLIFT 4805

Download



Please note that this is just a selection of all available documents. You can access all documents from the SERVICES > DOCUMENTS SEARCH AND DOWNLOAD page and all certificates from the SERVICES > CERTIFICATES SEARCH page.

Can't find what you're looking for?

We can offer customized solutions for your specific needs.
