Perfect for a panoramic lift installation

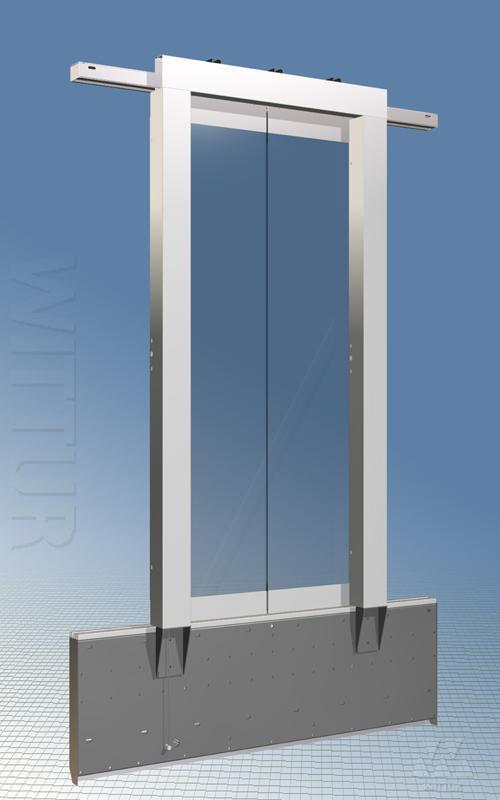

Glass panels doors

Glass panels doors give any installation a distinctive style; they are perfect for a panoramic lift installation, but can also offer more openness and light to a closed shaft lift.

The current standard allow you the utilisation of new solutions representing the maximum as far as safety, design and elegance concerns matching innovation and cost saving.

The doors are supplied in any kind of configuration and are available in two, three, four and six panels.

Description

1
2

Glass panels doors give any installation a distinctive style; they are perfect for a panoramic lift installation, but can also offer more openness and light to a closed shaft lift.

The current standard allow you the utilisation of new solutions representing the maximum as far as safety, design and elegance concerns matching innovation and cost saving.

The doors are supplied in any kind of configuration and are available in two, three, four and six panels.


USP's:
  • Frames dimensions mm 120 x 120 x 380
  • Panels with stratified and stiffened glass (thickness 16,76 mm)
  • Slam profile in methacrylate
  • Safety profiles compliant with EN 81-1/2
  • Re-closing system with counterweight
