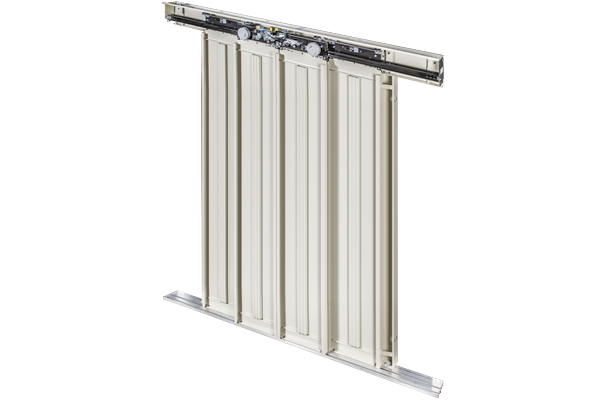

Sematic 2000 B-G landing door



Doors for freight elevators

Description

Providing flexible solutions to satisfy the needs of goods transportation in every industry

A door for freight elevator needs to be not only robust, but it has also to guarantee safety and reliability in all operative conditions, even in the extreme ones.

Sematic 2000 B-G satisfies these requirements thanks to a set of constructive solutions specially designed for this application such as reinforced expansion skate, frame and panels, increased rollers and steel upper tracks. 2000 B-G features door posts partially on the floor assuring easy and stable installation.

It’s available in a wide range of fire rated certifications, anti-vandal executions, with glass panels and many more. 2000 B-G is the ideal solution for elevators in airports, undergrounds, railway stations, shopping centers, hospitals, industrial buildings, multi-floor parking and in all those applications where the doors can be potentially hit.

 Product Range
Model TB min-max (mm) TH min-max (mm)
 K-S 2R/L 1000 - 2000 2000 - 3500
 K-S 3R/L 1000 - 2000 2000 - 3500
 K-S 2Z 1000 - 2000 2000 - 3500
 K-S 4Z 1000 - 3500 2000 - 3500
 K-S 6Z 1400 - 3500 2000 - 3500
For further infomation see our technical catalogues

 Bottom Track Park Overall Dimension (mm)
Opening K(car) S(landing) Pack(1)
 2R/L 90 135 255
 3R/L 135 180 345
 2Z 45 90 165
 4Z 90 135 255
 6Z 135 180 345
(1) 30mm sill distance


Door Opening Type












 FIRE RATED EXEXUTIONS - EN 81-58
 Model Steel Doors Framed Glass Doors
 S2 R/L E 120
EW 60
EI 60
EI 120
E 120
 S3 R/L
 S2Z
 S4Z
 S6Z
BS 476, GOST and many other certifications available. Call for information.

 DOOR AND FRAME FINISHES STANDARD OPTIONS
 RAL 7032 powder coating
 Other RAL Colours
 Framed glass panels and side posts
 Frameless glass panels
 Stainless steel claddings
 Skin plate claddings

 BOTTOM TRACK STANDARD OPTIONS
 Aluminum
 Steel
 Stainless Steel
AISI 304/ AISI 316
 Brass - Bronze
available for all doors type
except 3 R/L and 6Z

 MAIN FEATURES STANDARD OPTIONS
 Certified locking device EN81-1/2
EN81-20/50
 Position of the lock release Integrated into the
header
In the panel or in the
farme
 Door closing Spirator Counterweight
 Door panels Single skin Double skin
 Header height 280 mm
 Frame Boxed 120x90mm
door posts
Reduced door posts
(min.80×90 mm)
Increase door posts
(> 120 mm)
 Installation Door posts partially on
the floor
 Kit man in the pit In case of EN81-20/50 In case of EN81-1/2
 Monostable contact
 Impact robust
 packaging
Cardboard box
Wood (ISPM15)



 SPECIAL EXECUTION OPTIONS
 Portal execution
 Portal execution with glass
 Smoke-seal/Air-seal execution
 Anti-vandal execution EN81-71
 Hidden bottom track (no 3 R/L and 6Z)
 Australia execution
 Marine execution
