Features



Onyx is a machineroomless, central guided passenger elevator that ensures optimum riding comfort. With its innovative drive technology very energy-efficient operation is possible. Capacities up to 2.000 kg, travel height of up to 45 m and speed range of 1.0 or 1.6 m/s. Reduced pit or headrooms are possible dependent on speed and finishes.
In conjunction with new controller components we are able to offer ways to reduce installation times. The system uses an absolute value transmitter to accurately monitor the position of the elevator within the shaft and can offer pre-opening doors as standard.


320-2000 kg

1,0-1,6 m/s

45 m

Central guided

Wittur MF-RF series*

Single or double entrance

Side or center opening

EN 81-20/EN 81-50/EN 81-21

*Ziehl-Abegg drive series are also available.

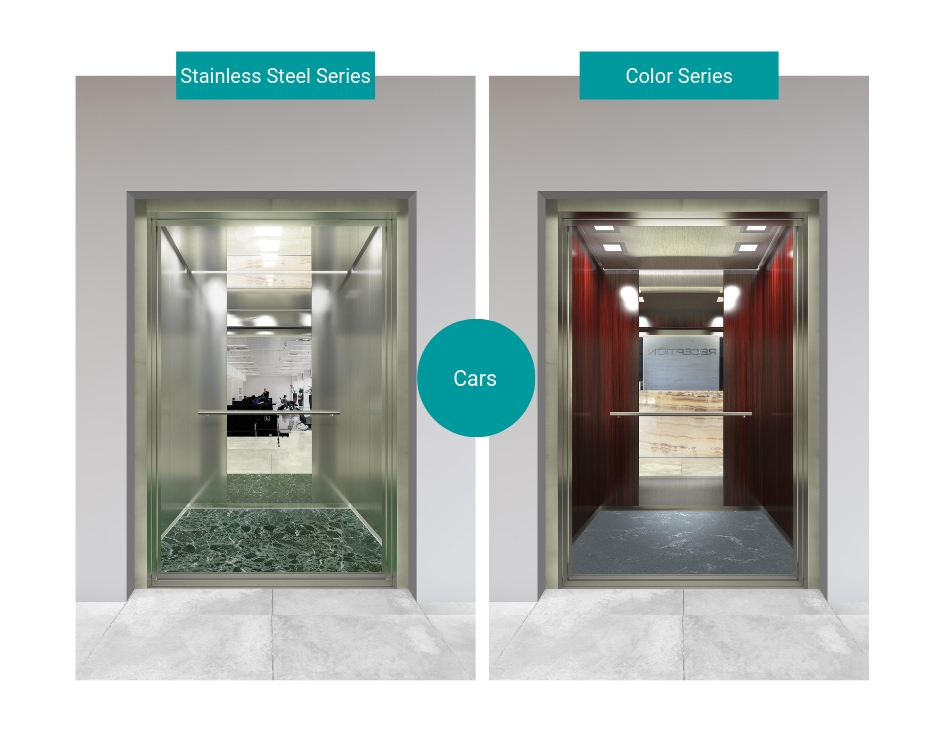

Cars



  • Stainless Steel Series
  • Color Series

* Please refer to Wittur MCS1 Car Catalogue for further details.

Doors








Augusta EVO










Fineline





         Hydra


*Please refer to Wittur Door Catalogue for further details.

Drives



Smooth, fast and comfortable travel



WSG-RF





System Rated Load Speed Suspension Drive Model* Connection Traction Diameter
Onyx 1000 320 kg - 450 kg 1,0 ... 1,6 m/s 2:1 WSG RF.2 Plug & Play ø120 mm
Onyx 1000 630 kg 1,0 ... 1,6 m/s 2:1 WSG RF.2 Plug & Play ø120 mm
Onyx 1000 800 kg 1,0 ... 1,6 m/s 2:1 WSG RF.3 Plug & Play ø120 mm
Onyx 1000 1000 kg 1,0 ... 1,6 m/s 2:1 WSG RF.3 Plug & Play ø120 mm
Onyx 2000 1275 kg 1,0 ... 1,6 m/s 2:1 WSG MF.1 Plug & Play ø210 mm
Onyx 2000 1400 kg 1,0 ... 1,6 m/s 2:1 WSG MF.1 Plug & Play ø210 mm
Onyx 2000 1600 kg 1,0 ... 1,6 m/s 2:1 WSG MF.2 Plug & Play ø210 mm
Onyx 2000 2000 kg 1,0 ... 1,6 m/s 2:1 WSG MF.2 Plug & Play ø210 mm
* Ziehl-Abegg drive series are also available.

Controller


E-Pack Plus
  • Compact Dimensions: integrated control with frequency inverter
  • Fast Installation: pre-arranged cabinet complete with all electrical components
  • Fits in every Shaft: with compact control cabinet dimensions or with service panel in front of the landind door frame and the power unit inside the head room
  • Easy Update: the hand-held terminal stores all data in the integrated SD card
  • Easy Setting: automatic motor tuning, shaft learning features
  • Remote Control: can bus connection between hand-held terminal with colored TFT display and lift. No PC needed
  • 5 Pre-Set Comfort Parameters: the most 5 important parameters for fast and safe commissioning
  • Always have an access to the latest manuals: with hand-held terminal always access to the latest firmware
  • Further Advantages: high stopping accurancy, retraction with opening door, energy-saving mode, releveling, short floor drive, integrated EMC filter and DC choke, 230 VAC safety circuit
  • Hand Terminal

Shaft Information System

Absolut shaft information system by ELGO or conventional shaft copy system with magnet switches.

E-Pack Max
FST-2XT with S1 Safety System


At a Glance
  • Separate control panel and frequency inverter
  • Optimal coordination between drive and inverter
  • Communication between frequency inverter and control panel via DCP
  • Full access to control panel and frequency inverter via remote data transmission (Optional)
  • Easier teach-in process
  • Panel is easily expandable with module or software

S1 Safety System​
  • Replaces conventional information system and mechanical safety functions
  • Decreased material cost
  • Decreased assembly cost
  • Operation and diagnose via Fst 2xt guide display
  • Shaft information by LIMAX 33 RED sensor with ELGO magnetic tape and S1 Safety System

COP-LOP: Sky Series



Sky Series are compatible with E-Pack Max controller.



COP-LOP: Ocean Series



Ocean Series are compatible with E-Pack Max & E-Pack Plus controller.






Product Overview



Rated
Load
kg 320 450 630 800 1000 1275 1400 1600 2000
Suspension   2:1
Rated Speed m/s 1 1,6 1 1,6 1 1,6 1 1,6 1 1,6 1 1,6 1 1,6 1 1,6 1 1,6
Max
Travel
Height
m 45
Open Through   Optional
Shaft
Width
Min.
mm Car Width + 500
Shaft
Depth
Min.
  Car Depth + 65 + Door Package
Pit mm 1050
(≥400***)
1150
(≥880***)
1050
(≥400***)
1150
(≥880***)
1050
(≥400***)
1050
(≥880***)
1050
(≥400***)
1150
(≥880***)
1050
(≥400***)
1150
(≥880***)
1050
(≥850***)
1150
(≥950***)
1050
(≥850***)
1150
(≥950***)
1050
(≥850***)
1150
(≥950***)
1050
(≥850***)
1150
(≥950***)
Headroom
With
Mechan.
Guard
mm +500**
(≥2500**)
+700** (≥2700**) +500**
(≥2500**)
+700**
(≥2700**)
+500**
(≥2500**)
+700**
(≥2700**)
+500**(≥2500**) +700**(≥2700**) +500**(≥2500**) +700**(≥2700**) KH/CH+700**(≥2700**) KH/CH+900**(≥2900**) KH/CH+700**(≥2700**) KH/CH+900**(≥2900**) KH/CH+700**(≥2700**) KH/CH+900**(≥2900**) KH/CH+700**(≥2700**) KH/CH+900**(≥2900**)
Headroom Without
Mechan. Guard
mm KH/CH+
1200***
/KH/CH+
1600
KH/CH+
1400***
/KH/CH+
800
KH/CH+
1200***
/KH/CH+
1600
KH/CH+
1400*** /KH/CH+
1800
KH/CH+
1200*** /KH/CH+
1600
KH/CH+
1400*** /KH/CH+
1800
KH/CH+
1200***
/KH/CH+
1600
KH/CH+
1400***
/KH/CH+
1800
KH/CH+
1200***
/KH/CH+
1600
KH/CH+
1400***
/KH/CH+
1800
KH/CH+
1600
KH/CH+
1800
KH/CH+
1600
KH/CH+
1800
KH/CH+
1600
KH/CH+
1800
KH/CH+
1600
KH/CH+
1800
Door
Width
mm 700-900 700-1200 800-1400
1000-2000
Door Height mm 2000-2300* 2000-2300*
2000-2500
Door Type   Augusta Evo / Hydra / Fineline
Car Width mm 750-1235 755-1475 755-2100 1100-2000 1200-2100 1300-2200
Car Depth mm 1050-1735 1125-1735 1125-2200 1250-2200 1230-2500 1450-2600 1450-2800
Car Inner Height** mm 2000-2940
* Dependent on door type.
** Headroom always refers to a car height with lighting direcly in the ceiling.
In the case of lighting with a suspended ceiling, it is necessary to add 60 mm for the calculation.
*** Individual tests and deviations possible.


Can't find what you're looking for?

We can offer customized solutions for your specific needs.
