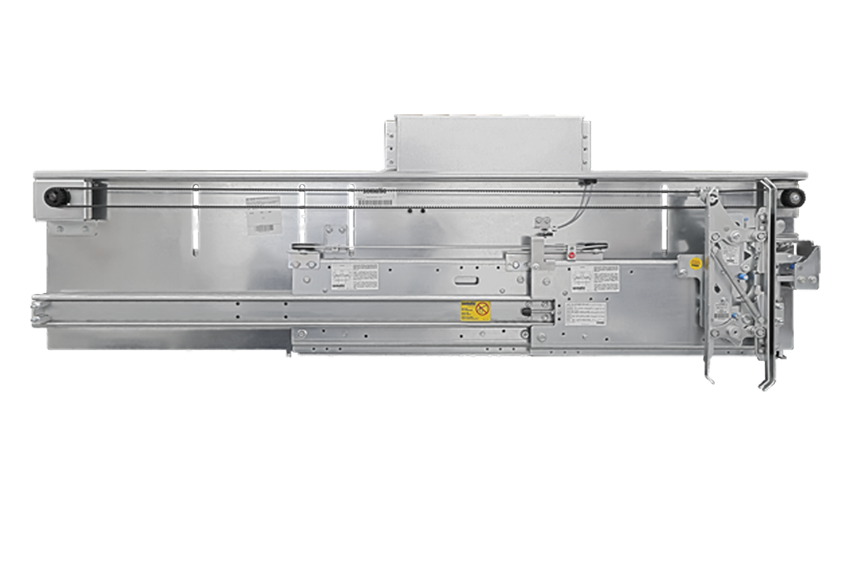

Sematic 2000 C-MOD car door

​Enhancing performances, passenger safety and comfort in existing lift systems

Do you need to upgrade your existing lift doors to comply with EN81-80 requirements? Do you need a compact, flexible solution for modernization without giving up performance, quality, cost and safety? Sematic 2000 C-MOD is the answer.

1
2
3
Homelift
Sematic 2000 C-MOD is a compact door for new and existing lift installations in reduced spaces

Advantages:
  • Combines compactness with high flexibility. Its different installations options make it suitable for any residential elevator
  • Can be supplied as an automatic or a semi-automatic door for existing swing door installation with car door lock (restrictor) Complient with EN81-20/50
  • C-MOD is used in standard Wittur door modernization packages for a selection of OEM’s doors: quick and easy modernization, no on-site adaptation required
Installation
INSTALLATION

  • Available installations in reduced spaces low operator height
    • 345 mm for 4Z,2RL
    • 407 mm for 2Z
    • 365 mm for 3RL


Performance
PERFORMANCE

  • Good performance in a small package
  • High energy efficiency thanks to SDS door drive or ECO+/MIDI+ motor (optional)
  • Upper rollers 60Ø mm external diameter.


Maintenance
MAINTENANCE

  • Low maintenance level needed
  • Easy access for maintenance parts


Executions
EXECUTIONS

  • Aluminium sill as standard
  • Different sill types possible including heavy load  sills.
  • Sheet metal panels
  • Framed and frameless executions
  • Hidden or heated sill
  • Fire-rated executions
  • Full or framed glass panels
Finishes
FINISHES

  • RAL 7032
  • Other RAL colours
  • Stainless steel claddings
  • Skin plate claddings
  • Painted steel finishes



Certifications
CERTIFICATIONS

  • EN 81-71 (Cat. 1)
  • EN 81-72
  • EN 81-20/50
  • EN 81-77
  • GOST 53780/53781

* Certification depends on door execution
