Features
320-2500 kg
1,0-3,0 m/s
160 m
Central guided
Wittur SF-MF-LF series*
Single or double entrance
Side or center opening
Complete system or mechanical kit only
EN 81-20/EN 81-50/EN 81-21 EN 81-28/EN 81-70/EN 81-71

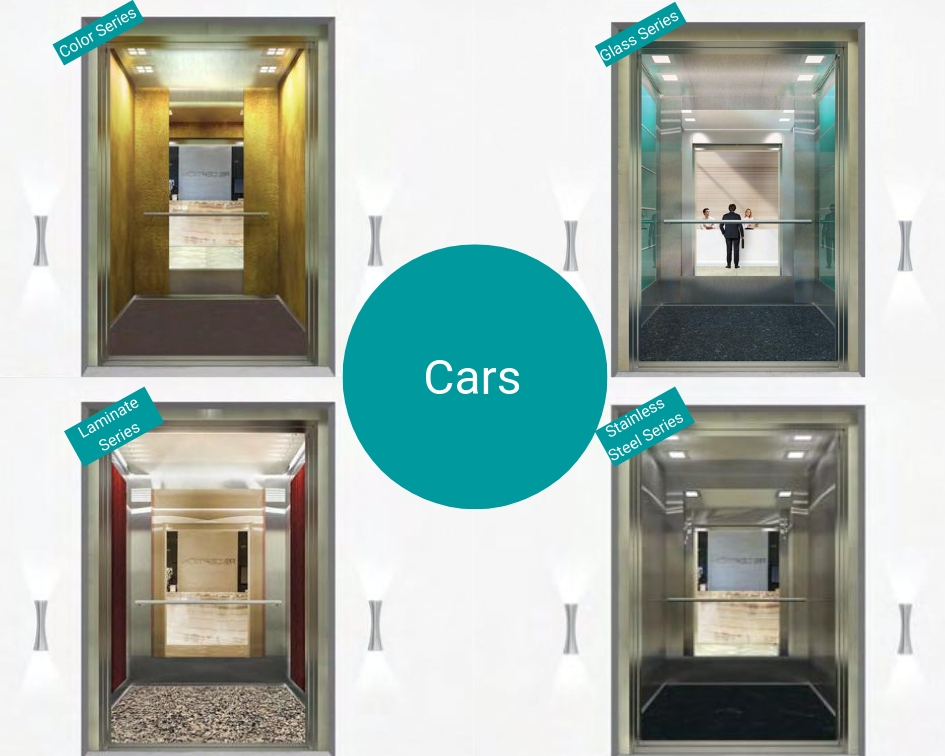

Cars
- Stainless Steel Series
- Color Series
- Laminates Series
- Glass Series
*Please refer to Wittur MCS1 Car Catalogue for further details.
Special Cars
Wittur supplies different kind of special cars, such as panoramic cars which can be adapted to any situation and it can be also customized with a lot of finishes.
Please contact LM Liftmaterial for further information (info.lm.de@wittur.com)
- Panoramic Cars
Wittur provides completely transparent panoramic cars, easy to adapt to both technological environments and refined and prestigious environments.
Finishes
*Please refer to Wittur MCS1 Car Catalogue for further details.
Doors
Augusta EVO
Core**
Fineline
Hydra
Pegasus
* Please refer to Wittur Door Catalogue for further details
** Available only in selected markets (Turkey, China and India)
Drives
Smooth, fast and comfortable travel
WSG-SF
WSG-MF
WSG-S3
| Lift | Rated Load | Suspension | Rated Speed | Drive Model* | Connection | Traction Diameter | Power |
| W Line 320 | 320 kg | 2:1 | 1,0 m/s | WSG-SF 1 | Plug & Play | ø240 mm | 2,3 kW |
| Terminal Box | |||||||
| W Line 400-500 | 400-450 kg | 2:1 | 1,0 ... 1,6 m/s | WSG-SF 2 | Plug & Play | ø240 mm | 3 ... 4,8 kW |
| Terminal Box | |||||||
| W Line 630 | 630 kg | 2:1 | 1,0 ... 1,6 m/s | WSG-SF 3 / WSG-SF-S | Plug & Play | ø240 mm | 4 ... 6,4 kW |
| Terminal Box | |||||||
| 2,0 m/s | WSG-SF 4 | Plug & Play | ø240 mm | 11,3 kW | |||
| Terminal Box | |||||||
| W Line 800 | 800 kg | 2:1 | 1,0 ... 1,6 m/s | WSG-SF S | Plug & Play | ø240 mm | 4,8 ... 7,74 kW |
| Terminal Box | |||||||
| 2,0 m/s | WSG-SF 4 | Plug & Play | ø240 mm | 11,3 kW | |||
| Terminal Box | |||||||
| 2,5 m/s | WSG-S3.4 | Terminal Box | ø320 mm | 28,1 kW | |||
| W Line 1000 | 1000 kg | 2:1 | 1,0 ... 1,6 m/s | WSG-SF 4 | Plug & Play | ø240 mm | 5,7 ... 9,1 kW |
| Terminal Box | |||||||
| 2,0 m/s | WSG-MF 1 | Plug & Play | ø320 mm | 17,5 kW | |||
| Terminal Box | |||||||
| 2,5 ... 3,0 m/s | WSG-S3.4 | Terminal Box | ø320 mm - ø400 mm | 22,5 kW | |||
| W Line 1275 | 1275 kg | 2:1 | 1,0 ... 1,6 m/s | WSG-MF 2 | Plug & Play | ø320 mm | 8,7 ... 14 kW |
| Terminal Box | |||||||
| 2,0 m/s | WSG-MF 3 | Plug & Play | ø320 mm | 22,5 kW | |||
| Terminal Box | |||||||
| 2,5 ... 3,0 m/s | WSG-S3.4 | Terminal Box | ø400 mm | 22,5 kW | |||
| W Line 1600 | 1600 kg | 2:1 | 1,0 ... 2,0 m/s | WSG-MF 3 | Plug & Play | ø320 mm | 11,2 ... 22,5 kW |
| Terminal Box | |||||||
| 2,5 ... 3,0 m/s | WSG-S3.5 | Terminal Box | ø400 mm | 30 ... 35,9 kW | |||
| W Line 2000 | 2000 kg | 2:1 | 1,0 ... 2,5 m/s | WSG-S3.6 | Terminal Box | ø400 mm | 16,4 ... 41,3 kW |
| W Line 2500 | 2500 kg | 2:1 | 1,0 ... 2,0 m/s | WSG-S3.6 | Terminal Box | ø400 mm | 16,4 ... 33 kW |
Controller
E-Pack Evo
- Power Range: between 4 kW and 22 kW
- Silent: operates quietly through its contractor-less system (Safe Torque Off-STO)
- Compact Dimensions: lift controller and frequency inverter integrated in one device
- DSP-Based design: highest level of comfort and efficiency
- Fast Installation: pre-arranged cabinet complete with all electrical components
- Group Control: support for group of lifts up to 8
- Hardware: built-in RFI filter and choke coil
- Interfaces: USB and Ethernet
- Remote Access: remote access via internet
- Access Control: integrated access control and VIP access support
- TFT Hand Terminal
E-Pack Plus
- Compact Dimensions: integrated control with frequency inverter
- Fast Installation: pre-arranged cabinet complete with all electrical components
- Fits in every Shaft: with compact control cabinet dimensions or with service panel in front of the landind door frame and the power unit inside the head room
- Easy Update: the hand-held terminal stores all data in the integrated SD card
- Easy Setting: automatic motor tuning, shaft learning features
- Remote Control: can bus connection between hand-held terminal with colored TFT display and lift. No PC needed
- 5 Pre-Set Comfort Parameters: the most 5 important parameters for fast and safe commissioning
- Always have an access to the latest manuals: with hand-held terminal always access to the latest firmware
- Further Advantages: high stopping accurancy, retraction with opening door, energy-saving mode, releveling, short floor drive, integrated EMC filter and DC choke, 230 VAC safety circuit
- Hand Terminal
Shaft Information System
Absolut shaft information system by ELGO or conventional shaft copy system with magnet switches.
E-Pack Max
FST-2XT with S1 Safety System
At a Glance
- Separate control panel and frequency inverter
- Optimal coordination between drive and inverter
- Communication between frequency inverter and control panel via DCP
- Full access to control panel and frequency inverter via remote data transmission (Optional)
- Easier teach-in process
- Panel is easily expandable with module or software
S1 Safety System
- Replaces conventional information system and mechanical safety functions
- Decreased material cost
- Decreased assembly cost
- Operation and diagnose via Fst 2xt guide display
- Shaft information by LIMAX 33 RED sensor with ELGO magnetic tape and S1 Safety System
COP-LOP: Wave Series
Wave Series are compatible with E-Pack Plus controller.
COP-LOP: Sky Series
Sky Series are compatible with E-Pack Max & E-Pack Plus controller.
COP-LOP: Ocean Series
Ocean Series are compatible with E-Pack Max & E-Pack Plus controller.
COP-LOP: Sunset Series
Sunset Series are compatible with E-Pack Evo controller.
Product Overview
| Rated Load | kg | 320 | 400 | 450 | 630 | 800 | 1000 | 1275 | 1600 | 2000 | 2500 | |||||
| Suspension | 2:1 | |||||||||||||||
| Rated Speed | m/s | 1,0 | 1,0 | 1,0 / 1,6 | 1,0 / 1,6 / 2,0 | 1,0 / 1,6 / 2,0 / 2,5 | 1,0 / 1,6 / 2,0 / 2,5 / 3,0 | 1,0 / 1,6 / 2,0 / 2,5 / 3,0 | 1,0 / 1,6 / 2,0 / 2,5 / 3,0 | 1,0 / 1,6 / 2,0 / 2,5 | 1,0 / 1,6 / 2,0 | |||||
| Max. travel height | m | 30 | 30 | 30 / 60 | 30 / 60 / 90 | 30 / 60 / 90 / 120 | 30 / 60 / 90 / 120 | 30 / 60 / 90 / 120 / 160 | 30 / 90 / 60 / 120 / 160 | 30 / 60 / 90 / 120 | 30 / 60 / 90 | |||||
| Open through | Optional | |||||||||||||||
| Shaft width min. | mm | CIW + 530 | CIW + 535 | CIW + 700 | ||||||||||||
| Shaft depth min. | mm | CID + ESD + 82,5 + Door Package | ||||||||||||||
| Standard Pit min. | mm | 950 | 950 | 950 /1050 | 950 / 1050 / 1200 | 950 / 1050 / 1200 / 1550 | 950 / 1050 / 1200 / 1550 / 1820 | 950 / 1050 / 1200 / 1550 / 1820 | 950 / 1050 / 1200 / 1550 / 1820 | 1200 / 1300 / 1400 / 1550 | 1200 / 1300 / 1400 | |||||
| Standard Headroom min.* | mm | 3420 | 3420 | 3420 / 3590 | 3420 / 3590 / 3870 | 3420 / 3590 / 3870 / 4540 | 3420 / 3590 / 3870 / 4540 / 4810 | 3900 / 4050 / 4200 / 4640 / 4810 | 3970 / 4050 / 4200 / 4640 / 4810 | 4000 / 4160 / 4310 / 4640 | 4000 / 4160 / 4310 | |||||
| Reduced Pit Min.** | mm | 500 / 900 | 950 / 1050 | |||||||||||||
| Reduced Headroom min.** | mm | CIH + 750 (500 ****) / CIH + 900 | CIH + 1450 / CIH + 1600 | CIH + 1600 / CIH + 1750 | ||||||||||||
| Door width | mm | 700 - 1000 | 1000 - 1300 | |||||||||||||
| Door height | mm | 2000 - 2600 | ||||||||||||||
| Door type | Core / Augusta / Hydra / Pegasus / Fineline | |||||||||||||||
| Car internal width (CIW)*** | mm | 900 | 1100 | 1000 | 1100 | 1350 | 1100 | 1200 | 1400 | 1500 | 1800 | |||||
| Car Internal depth (CID)*** | mm | 1000 | 1000 | 1250 | 1400 | 1400 | 2100 | 2300 | 2400 | 2700 | 2700 | |||||
| Car Internal height (CIH) | mm | 2000 - 3000 | ||||||||||||||
** Reduced pit and headroom are available for 1 m/s and 1,6 m/s, compensation chain included for 1,6 m/s. Foldable balustrade could be used for reduced headroom.
*** Mentioned CIW and CID values are erferance dimensions acc. to rated load. Different dimensions are also available.
**** The value is valid with absolut shaft information system.
